If you’re sourcing wear-resistant components for a cement plant, performance consistency and service life matter more than anything else. As a specialized High Chrome MMC (Metal Matrix Composite) casting manufacturer in Mumbai, we deliver engineered solutions designed to withstand extreme abrasion, impact, and high-temperature operating conditions found in modern cement manufacturing.
Our MMC castings combine a high chromium white iron matrix (18%–28% Cr) with ceramic reinforcements (such as Al₂O₃ / SiC preforms or dispersed carbides) to significantly enhance wear life compared to conventional high chrome castings.
What Are High Chrome MMC Castings?
High Chrome MMC castings are advanced wear-resistant components where hard ceramic phases are embedded into a metallic matrix. This hybrid structure provides:
- Superior abrasion resistance
- Improved impact tolerance vs standard high chrome
- Longer operational life in aggressive environments
- Reduced downtime and maintenance costs
Unlike traditional castings, MMC technology ensures that wear resistance is not just surface-deep but structurally integrated.
Technical Specifications
We manufacture MMC castings tailored to cement plant requirements, with tight control over metallurgy and process parameters.
Material Composition (Typical Range)
- Chromium (Cr): 18% – 28%
- Carbon (C): 2.5% – 3.5%
- Molybdenum (Mo): 0.5% – 2.5% (optional for enhanced toughness)
- Nickel (Ni): 0% – 2% (for improved matrix stability)
MMC Reinforcement Options
- Ceramic preform inserts (Alumina / Silicon Carbide)
- In-situ carbide formation
- Honeycomb or localized reinforcement zones
Mechanical Properties
- Hardness: 58–65 HRC (matrix)
- Reinforced zones: Equivalent wear resistance up to 70+ HRC
- Impact resistance: Higher than conventional high chrome (depending on design)
Heat Treatment
- Controlled austenitizing and tempering cycles
- Stress-relief treatments to minimize cracking
- Optimized carbide distribution for uniform wear
Key Applications in Cement Plants
Our High Chrome MMC castings are widely used across critical wear zones in cement manufacturing:

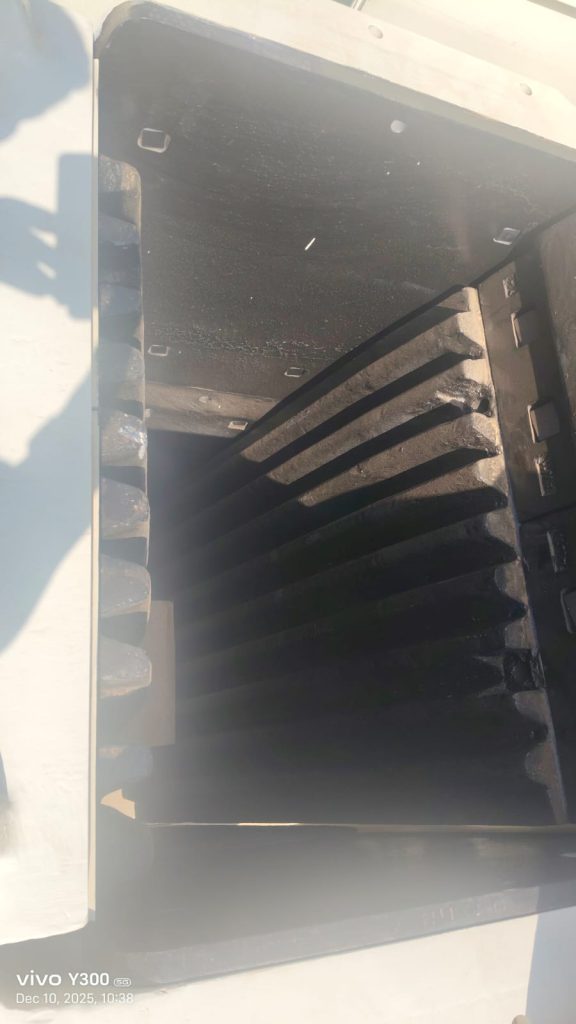

🔹 Crusher Components
- Blow bars
- Hammers
- Impact plates
🔹 Grinding Equipment
- Mill liners
- Grinding rolls
- Table segments
🔹 Clinker Handling Systems
- Cooler grate plates
- Clinker crusher parts
🔹 Material Transport Systems
- Chute liners
- Wear plates
These components face continuous abrasion from clinker, limestone, and raw materials, making MMC the ideal choice for extended service life and reduced replacement frequency.
Why Cement Plants Prefer MMC Over Standard High Chrome
1. Longer Service Life
MMC castings can last 1.5x to 3x longer than standard high chrome parts depending on application.
2. Reduced Downtime
Fewer shutdowns for replacement = higher plant productivity.
3. Cost Efficiency
While initial cost may be higher, cost per ton of production decreases significantly.
4. Application-Specific Engineering
We design reinforcement placement based on:
- Wear pattern
- Impact zones
- Operational conditions
Manufacturing Capabilities
As a Mumbai-based foundry, we offer:
- Small to medium batch production with quick turnaround
- Precision moulding for complex geometries
- Strict quality control at every stage
- Ability to develop parts based on drawings or samples
We work closely with plant engineers to ensure exact fitment and performance optimization.
Quality Assurance
Every casting undergoes:
- Chemical composition analysis
- Hardness testing (Brinell / Rockwell)
- Microstructure evaluation
- Dimensional inspection
Optional:
- Ultrasonic testing (UT)
- Dye penetrant inspection (DPI)
Frequently Asked Questions (FAQs)
1. What is the advantage of MMC over standard high chrome castings?
MMC castings offer significantly higher wear resistance due to ceramic reinforcement, resulting in longer life and better performance in abrasive conditions.
2. Are MMC castings suitable for high-impact applications?
Yes—when properly engineered. We design localized reinforcement zones so that impact areas retain toughness while high-wear zones remain ultra-hard.
3. What hardness should I choose for cement plant applications?
Typically, 58–65 HRC works well for most applications, but the optimal hardness depends on:
- Impact vs abrasion balance
- Equipment type
- Operating conditions
4. Can you customize castings as per our drawings?
Absolutely. We manufacture based on:
- Technical drawings
- Samples
- Reverse engineering
5. What is the typical lead time?
Lead time depends on part complexity and quantity, but we prioritize fast turnaround for urgent plant requirements.
6. Do you supply across India?
Yes, we supply to cement and mining operations across India with reliable logistics support.
Get a Quote for High Chrome MMC Castings
If you’re looking to improve wear life and reduce downtime in your cement plant, our High Chrome MMC castings offer a proven solution.
👉 Share your drawing, material specification, or sample
👉 Get a technical consultation and quote within 24 hours
Partner with a Mumbai-based specialist focused on performance-driven casting solutions for cement and mining industries.
